VENTILATION SEALS

Concrete and plug seals individually designed to suit the strata conditions and roadway dimensions of most underground mines.

We have installed ventilation seals throughout Australian coal mines for more than 15 years. We offer full roadway evaluation, design and contract installation of explosion rated seals. Our installed structures are fully rated and quality control tested to ensure construction is completed according to full design specifications.

Our offer includes;

  • Plug seals constructed from our high volume grouts, FB200  and Tekseal
  • Concrete seals constructed from our Meshblock™ system, reinforced by a series of steel rebars anchored into the surrounding strata.
  • Range of access hatches to suit ventilation seal designs
Product Image
Product Image
Product Image
Advantages
  • ROBUST
  • CUSTOMER SOLUTIONS
  • EXPLOSION RATED
Features
  • Explosion rated plug seals (Tekseal, FB200) have been tested to withstand blast pressures of 20 and 50 psi
  • Explosion rated concrete seals (Meshblock) have been tested to withstand pressures of 20 and 50 psi
  • Variety of access hatches to suit ventilation seal designs

Product Options
  • Plug Seals
  • Concrete Seals
  • Coffin Seals
  • Access Hatches

Related Products

Minova Image

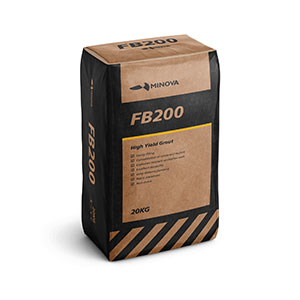

FB200

Our FB200 low viscosity, high yield grout is used for many applications within underground mines. We have 20 years experience in using FB200 for stabilising rockfill to enhance stope extraction, constructing explosion rated ventilation seals, filling of large voids and constructing false pillars for pre-driven recovery roads.

We have developed variants for hostile conditions such as saline water, hot water and long distance pumping.

Typically pumped at a 2:1 water:powder ratio, FB200 can be used between 1:1 and 3:1 ratios depending on individual project requirements.

FB200 is supplied as a ready to use free flowing blended cementitious powder that only requires the addition of water in a suitable placing machine.
Minova Image

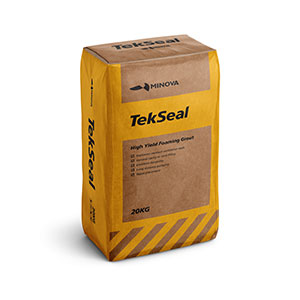

Tekseal™

High yield, long life foaming grout primarily used for ventilation applications and cavity filling. Supplied as a ready to use free flowing blended cementitious powder that forms cement foam on mixing with water in a purpose designed placer.

Uses include explosion resistant ventilation seals, recovery of longwall face falls, backfilling behind steel sets, recovery of falls, rib stabilisation and general void filling.
