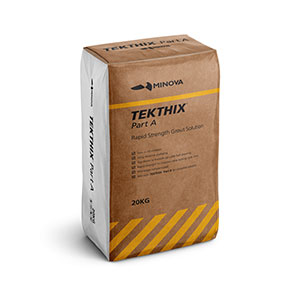

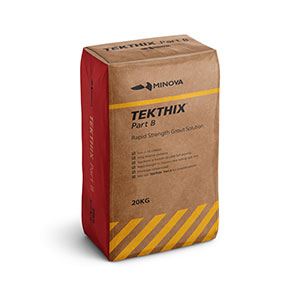

Fast setting grout system used for top down grouting. Supplied as a two-component ready to use cementitious powder. The addition of water to each component is required before blending. The combined mixture reacts quickly to form a thick paste for “top down” grouting or post grouting of cable bolts, SDA’s or long tendon support systems. Within seconds of mixing and setting early load transfer is achieved between steel tendon and strata.
|TECHNICAL PROPERTY||TYPICAL VALUE|
|UCS 1 Hr||20 MPa|
|UCS 24 Hrs||35 MPa|
|UCS 7 Days||50 MPa|
|UCS 28 Days||65 MPa|
|Flexural strength 28 Days||8 MPa|
|Tensile strength 28 Days||5 MPa|
|Young's modulus 28 Days||5 GPa|
|Set time A+B||10 Min|
|Pot life A & B||> 5 Hours|
High strength, cable bolt anchoring grout. Supplied as a ready to use, free flowing, blended cementitious powder that only requires the addition of water in a high shear mixer. Stratabinder HS Slow Set is also available as a high strength, low viscosity grout for maximum strata penetration which remains workable for several hours.
Rapid strength, thixotropic cable bolt grout. Supplied as a ready to use, free flowing, blended cementitious powder that only requires the addition of water in a high shear mixer to produce a free-flowing thixotropic grout. Ideal for cable bolt grouting in underground and surface mine applications where rapid strength gain is a prerequisite. Long pot life option available for use with automated cable bolting rigs.
High strength, thixotropic anchoring grout used for top down grouting, grouting of long tendons and consolidation.
Ready to use, free-flowing, blended cementitious powder that only requires the addition of water in a high shear mixer, to produce a highly thixotropic grout.
With the addition of FB400 + to our range, you can now grout cables 100m away from the grout pump is located using Minova's industry leading grout
