QUICK-CHEM™ SYSTEM

RESIN INSERTION SYSTEM.

Patented insertion system developed to remotely install Lokset resin capsules into boreholes for rock bolting. The Quick-Chem system is used in conjunction with Lokset resin capsules to ensure quick, safe, efficient and remote insertion of the resin capsule into the bolt hole.

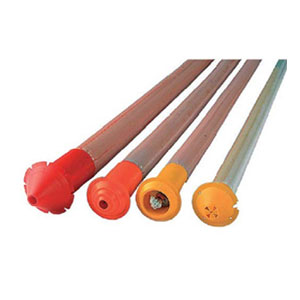

The system aids mechanical installation of resin capsules where hand installation is not practical. The system includes a purpose designed retaining cap (attached to the resin capsule) and an insertion tube. The insertion tubes consist of a 25mm, 26mm, 30mm or 36mm diameter tube and R32 threaded adaptor sleeve. The tubes are fitted into the Jumbo drifter, and used to safely insert resin capsules undamaged to the back of each borehole.

Product Image
Advantages
  • SAFE AND SIMPLE SYSTEM
  • QUICK AND EFFICIENT
  • VISUAL CONFIRMATION OF RESIN POSITION
Features
  • Safe, enables resin capsule to be inserted in bolt hole from remote location under supported ground
  • Quick, no requirement for lifting baskets or manual resin insertion, capsule can often be placed in insertion tube from operator’s cab
  • Efficient, up to 200-hole insertions can be achieved from each tube
  • Easy to use, clear tubing indicates position of resin capsule
  • Robust; strong and flexible insertion tube
  • Versatile, can be used with most drill rigs such as Robolters, Jumbo’s, Boltec etc and in most rock bolting situations
  • Adaptable, can be inserted through mesh and broken ground
  • Reliable, assists the resin capsule in reaching the back of the hole undamaged
  • Available in various lengths and diameters

Configurations

Tube Size Tube ID Tube OD Total Length (Including Adapter)
25/26mm 26.8-27.5mm 31.4-31.8mm 3.15m
30mm 30.35-30.85mm 33.5-33.75mm 3.15m
36mm 36.3-36.8mm 40.75-41.25mm 3.75m
Product Options
  • Quick- Chem 36mm Cap RD 8 pieces SKU RN0000029 36mm diameter
  • Quick- Chem 26MM CAP YL 9PC RN0000030 29mm diameter
  • Quick- Chem 30MM CAP OR 7PC RN0000031 30mm diameter
  • Quick- Chem COMPLETE NT0000039 3000mm length x 26mm diameter
  • Quick- Chem COMPLETE NT0000041 3600mm length x 30mm diameter
  • Quick- Chem COMPLETE NT0000042 3000mm length x 36mm diameter
  • Quick- Chem COMPLETE NT0000045 3000mm length x 30mm diameter

Related Products

Minova Image

Lokset® X2

Two resin capsules joined and folded in half for packaging. A system developed to enable full encapsulated mechanised resin bolting, utilising the Quick‑Chem™ resin capsule insertion system. Lokset X2 range is available with any single or combination of Minova resin capsule mastics. Any capsule combination can be ordered and the individual Quick-Chem caps are supplied in the boxes.

The capsule is filled with a reinforced thixotropic polyester resin in one compartment and a catalysed mastic filler in the other, separated by a physical barrier. The rotation of the bolt during installation ruptures the capsule, shreds the skin and mixes the two components causing a chemical reaction and transforming the resin mastic into a solid anchor.

The Quick‑Chem insertion system is used to remotely install resin capsules into boreholes for rock bolting. The system aids mechanical installation of resin capsules where hand installation is not practical.

Quick-Chem consists of a retaining cap (attached to the resin capsule) and an insertion tube. The tubes are fitted into the Jumbo drifter, and used to safely insert resin capsules undamaged to the back of each borehole.
