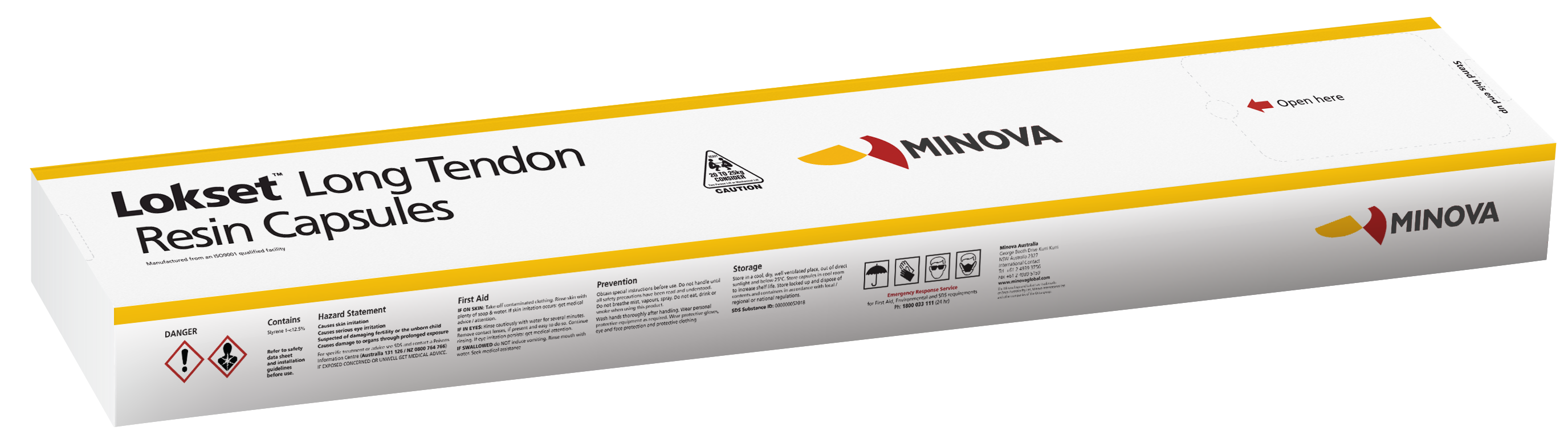

LONG TENDON SUPPORT.
Specially formulated resin mastics to aid insertion where long tendon support is required. This range was developed for use with all resin anchored cable bolts and includes F-Series and J-Series capsules. J-Series capsules are used as an anchoring support in strata where larger annular gaps between bolt and hole diameters are encountered with long tendon strand cables.
Can be used with a range of long tendon support cables and include; SuperStrand cables, Flexibolts, Spinbolts, Megabolts, and Cable bolts.
Uses include intersections, cut throughs, long life roadways, secondary and additional primary support
Advantages
- SLOW SET CAPSULE
- FULL ENCAPSULATION WITH PRE-TENSIONING
- LONG TENDON SUPPORT
Features
- Aids mixing in larger annular gaps due to a specially formulated resin mastic and catalyst
- Rapid strength build up, bolt will take load almost immediately
- A unique design of capsule configuration enabling extremely effective mixing of resin mastic and catalyst compartments
- Point anchor installation with slow set capsule
- Full encapsulation with pre-tensioning utilising combination of slow and extra slow speeds.
- Full encapsulation without pre-tensioning using extra extra slow set capsule speed
- Eliminates the need for costly and time consuming post grouting by completing full bolt encapsulation in single operation
- High compressive strength, strong, rapid and consistent anchorage
- High modulus
- Rapid insertion, easy and quick to use
- Protects bolt from corrosion, can be used inmoderately wet conditions
- No expansion stresses, can be used in weak strata
- 4 Months shelf life
Configurations
| CAPSULE SPEED | CAPSULE CODE | CAPSULE COLOUR | SPIN TIME* | HOLD TIME* |
|---|---|---|---|---|
| FR Slow | FRS | Light Green/Blue | 20 s | >120 s |
| FR Extra Extra Slow | FRXXS | Light Green/Blue | 20 s | >1200 s |
| J-Series Slow | S | Blue | 20 s | >60 s |
| J-Series Medium | M | Red | 12 s | >20 s |
Typical insertion properties at 25°C
* Approximate spin time in seconds
* Minimum hold time in seconds
Product Options
- Lokset J Series - SKU NF0000085, Medium speed, 1,000mm L x 36mm D
- Lokset J Series - SKU NF0000086, Medium speed, 1,000mm L x 36mm D with retainer
- Lokset J Series - SKU NF0000088, Slow speed, 1,000mm L x 36mm D with retainer
- Lokset J Series - SKU NF0000090, Slow speed, 600mm L x 45mm D with retainer
- Lokset J Series - SKU NF0000336, Medium speed, 800mm L x 36mm D
- Lokset J Series - SKU NF0000598, Slow speed, 1,000mm L x 36mm D with bag
- Lokset J Series - SKU NF0004670, Medium speed, 1,000mm L x 36mm D with retainer & bag
- Lokset F Series - SKU NF0000318, FRXX Slow, 1,000mm L x 25mm D
- Lokset F Series - SKU NF0004408, FRXX Slow speed, 880mm L x 25mm D with retainer
- Lokset F Series - SKU NF0004609, Slow speed, 1,000mm L x 38mm D
The quality of Lokset resin capsule is assured through a four part quality control program
- Raw Material Testing
- In process quality control testing
- Finished Product acceptance testing
- Quality system management to ISO 9001
