Lokset™ Toospeedie™ Resin Capsules

Lokset™ TOOSPEEDIE Resin Capsule is a two-speed polyester resin anchoring system increasing your productivity and efficiency.

Lokset™ TOOSPEEDIE remains to be the most groundbreaking capsule solution in the evolution of resin bolting.

This product eliminates the need to use multiple resin capsules to achieve pre-tensioning of fully encapsulated resin grouted rock bolts. It is used as an anchoring medium for rock bolts and long tendons to provide primary roof support in mines and tunnels.

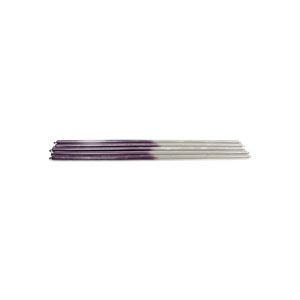

Product Image

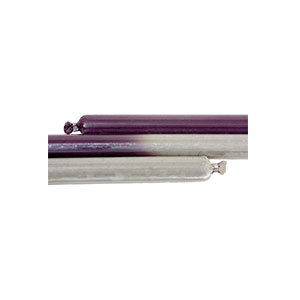

Product Image
  • Reduced handling and wastage
  • Variable speed
  • Quick, high load transfer
Product Features
  • A unique design of capsule configuration enabling extremely effective mixing of resin mastic and catalyst compartments
  • Rapid insertion, easy and quick to use
  • Higher compressive strength, strong, rapid and consistent anchorage
  • Guarantees both fast and slow set resin is installed
  • Both speeds compatible giving reduced back pressure and easier penetration
  • No plastic or cardboard joiners required
  • Allows roof bolt to be tensioned immediately after installation
  • Acts as a reinforcement that clamps the individual strata layers together into a single high strength beam
  • Protects bolt from corrosion, can be used in wet or underwater conditions
  • It is not affected by vibration
  • Thanks to the fact that no expansion stresses take place, it can be used in weak strata

Product Options
  • Lokset™ TOOSPEEDIE™ resin capsules are for any temperatures up to 30ºC.
  • The capsules are packed in cardboard cartons and supplied on wooden pallets, shrink-wrapped.
Minova Image

Lokset Accessories

We provide a comprehensive range of auxiliary products for the fast and easy application of this innovative product.

Resin Capsule Parachutes

Parachutes are recommended when Lokset™ resin capsules are air-loaded into rock bolt holes. The parachute guides and protects the capsule while it travels at high speed through the loading tube into the hole, then holds the capsule up the hole until the bolt is inserted.

Instructions for use:

  • Gently force the resin capsule into the open end of the parachute
  • Load the capsule into the capsule gun so that the parachute is on the front end
  • Fire the capsule into the hole


Resin Capsule Top Hats (Retainers)

Resin capsule top hats are made from recycled plastic and are used to retain resin capsules in rock bolt holes, until the bolts are inserted. This frees the operator to use both hands for other tasks such as lining up the rock bolt and operating the bolting machine.

Instructions for use:

  • Insert the resin capsule into hole.
  • Push in the top hat behind the resin capsule.
  • If multiple capsules are used, push in a top-hat behind each one


Resin Capsule Injector

The resin injector is used to load Lokset™ resin capsules into roofbolt holes, and consists of a plunger within a hollow tube. Each Resin Injector is tested in our laboratories prior to dispatch.

Instructions for use:

  • Remove the plunger from the outer tube.
  • Insert the appropriate size polytop into one end of the outer tube.
  • From the other end, insert the Lokset™ resin capsules
  • Push the injector against the roofbolt hole opening, and push the plunger until the resin capsules and polytop are inside the hole.


Quick-Chem™ System

The Quick-Chem™ Lokset™ resin capsule insertion system ensures safe, fast and complete insertion of resin capsules. The system consists of a specially designed cap suitable for attaching to Lokset™ resin capsules and an insertion tube that carries the resin capsule(s) to the back to of the holes and is then removed for re-use.

Instructions for use:

  • Securely attach appropriate Quick- Chem™ cap to the end of the Lokset™ resin
  • Place the capsule with the cap attached in the Quick-Chem™ insertion tube
  • Fit the tube to the shank of the drifter
  • Collar the tube in the hole and push into the hole until the resin capsule cannot be seen
  • Withdraw the tube
