The material is hot rolled carbon steel of homogeneous microstructure and uniform hardness across the cross-sectional area. Rock bolt assemblies are packaged as complete, ready-to install units and are used for anchoring, roof stabilisation, rock surface control and structural reinforcement.

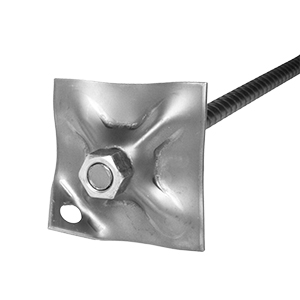

Rock bolt assemblies with extended-length coarse thread, for multiple re-tightening after installation with resin capsules. Assemblies comprise the stud, matching nut and bearing plate washer, in a variety of bolt diameters and lengths. Rock bolt assemblies are packaged as complete, ready-to install units.
The stud portion of the Rock Bolt Assembly comprises a deformed steel bar with a cold-rolled thread at one end.
The Tyta Bolt has a 6mm pitch knuckle thread, with proprietary form, from lengths of 200 mm up to a maximum of 500 mm in length.
Lokset capsules are filled with a reinforced thixotropic polyester resin in one compartment and a catalysed mastic filler in the other, separated by a physical barrier. The rotation of the bolt during installation ruptures the capsule, shreds the skin and mixes the two components causing a chemical reaction and transforming the resin mastic into a solid anchor.
